TOUR WORLDTW717 430DRIVER

TOUR WORLD TW717 430
TW717特設サイト

Page Top

TECHNOLOGY

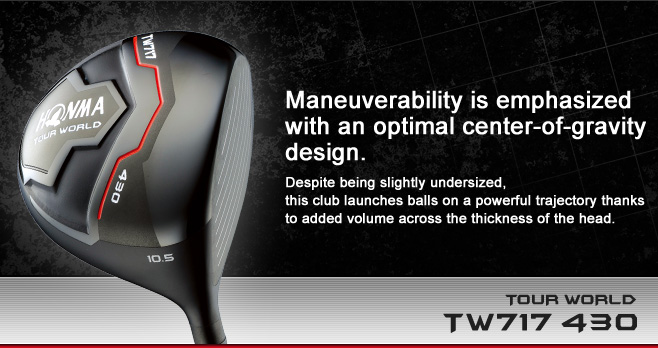

A high-back form to allow you to easily control the ball

  • Maneuverability is emphasized with an optimal center-of-gravity design.
  • A high-back form that enables you to imagine striking the ball as the club head travels along a level plane.
  • Despite being slightly undersized, this club launches balls on a powerful trajectory thanks to added volume across the thickness of the head.
TW717 430

TW717 430
3AL-2.5V titanium
G4Titanium
13-gram weight optimal center-of-gravity positioning
Highly durable 6A-4V titanium
Pure titanium hosel

  • By partially modifying the thickness of the face, the rebound area has been enlarged to mitigate the carry loss caused when a ball is hit incorrectly.
TW717 430
Thickest
Thinnest

  • A power crown for launching balls on a powerful trajectory
  • A slightly oval-faced shape to help prevent the head from returning too much on the backswing
TW717 430
Thickest
Thinnest

Page Top

SPEC

Head material / Manufacturing process Sole: G4 Titanium
Crown:3AL-2.5V Titanium / Forged
Face material 6-4V Titanium / Forged
Shaft ARMRQ8 62,ARMRQ8 54
VIZARD TA75,TA65,TZ75,TZ65
Length (inches) 45.25
Loft (deg.) 8.5 9.5 10.5
Head volume(cm3) 430
Lie angle (deg.) 58.5
Distance to center of gravity (mm) 38.0
Height to Center of Gravity (mm) 34.5
Depth to center of gravity (mm) 38.5
Gravity Angle (deg.) 22.0
Swing weight・
Gross weight (g)
ARMRQ8 62 R D1 311
S D2 316
ARMRQ8 54 R D1 305
S D2 310
TA TZ 75 S D2 324
TA TZ 65 SR D2 315
S D2 317
Made in Japan

Page Top

SHAFT

Please click here for details of shaft.
  • ARMRQ8
  • TA
  • TZ

ARMRQ8 62

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 63.0
S 66.0
Torque (deg.) R 3.75
S 3.65
Frequency (cpm) R 273
S 289
Data refers to the 2S/1W

ARMRQ8 54

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 55.0
S 58.0
Torque (deg.) R 3.95
S 3.85
Frequency (cpm) R 257
S 273
Data refers to the 2S/1W

TA75

Material Carbon
Kick-point Mid
Butt diameter (mm) S 15.6
Tip diameter (mm) 8.6
Flex S
Gross weight (g) S 73.5
Torque (deg.) S 3.45
Frequency (cpm) S 295
Data refers to the 1W

TA65

Material Carbon
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
Tip diameter (mm) 8.6
Flex SR,S
Gross weight (g) SR 63.5
S 65.0
Torque (deg.) SR 3.90
S 3.85
Frequency (cpm) SR 284
S 292
Data refers to the 1W

TZ75

Material Carbon
Kick-point High
Butt diameter (mm) S 15.6
Tip diameter (mm) 8.6
Flex S
Gross weight (g) S 75.5
Torque (deg.) S 3.40
Frequency (cpm) S 287
Data refers to the 1W

TZ65

Material Carbon
Kick-point High
Butt diameter (mm) SR 15.6
S 15.6
Tip diameter (mm) 8.6
Flex SR,S
Gross weight (g) SR 65.5
S 67.0
Torque (deg.) SR 3.85
S 3.80
Frequency (cpm) SR 276
S 284
Data refers to the 1W
