TOUR WORLDTW717UTILITY

TOUR WORLD TW717
TW717特設サイト

TECHNOLOGY

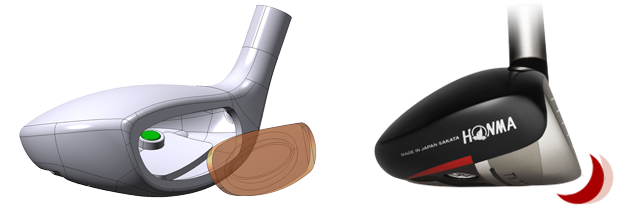

  • A lower center of gravity and maneuverability are emphasized by coupling an weight screw with a weight extending from the heel.
  • A sharp and undersized head form allows you to work the ball from any lie.
TW717
By adopting a face design characterized by partial thickness, rebound performance is enhanced.
A rounded leading edge reduces the incidence of improperly hit balls by allowing even balls that have sunk a little to be easily scooped up.

TW717
Approximately 3.5-gram weight screw

  • Lowered face progression better allows balls to be hit squarely and straight, enables balls to be hit as if you were handling an iron club, and enhances maneuverability.
TW717

Page Top

SPEC

Head material / Manufacturing process SUS630/Casting
Face material High-Strength Customed Steel
Shaft ARMRQ8 62,ARMRQ8 54
VIZARD UT950,UT850,UT650,UT550
NS PRO950GH
# (No.) 16 19 22
Loft (deg.) 16 19 22
Lie angle (deg.) 59.0 59.0 59.0
Length (inches) ARMRQ 40.5 40.0 39.5
VIZARD 40.5 40.0 39.5
NS PRO950GH 40.0 39.5 39.0
Distance to center of gravity (mm) 32.5 33.0 33.5
Height to Center of Gravity (mm) 19.0 19.5 20.5
Depth to center of gravity (mm) 25.0 25.0 25.5
Gravity Angle (deg.) 17.0 17.0 17.5
Swing weight・
Gross weight (g)		 ARMRQ8 62 R D0 344 D0 348 D0 352
S D1 349 D1 353 D1 357
ARMRQ8 54 R D0 337 D0 341 D0 345
S D1 342 D1 346 D1 350
UT950 D3 378 D3 382 D3 386
UT850 D2 368 D2 372 D2 376
UT650 D2 351 D2 355 D2 359
UT550 D1 341 D1 345 D1 349
NS PRO950GH S D2 384 D2 388 D2 392
ARMRQ:Data refers to the 2S
Made in Japan

Page Top

SHAFT

Please click here for details of shaft.
  • ARMRQ8
  • TA
  • NS PRO 950GH

ARMRQ6 62

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
Flex R,S
# (No.) 16 19 22
Gross weight (g) R 61.0 60.5 60.0
S 64.0 63.5 63.0
Torque (deg.) R 3.35 3.35 3.35
S 3.25 3.25 3.25
Frequency (cpm) R 308 313 318
S 324 329 334
Data refers to the 2S grade

ARMRQ8 54

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
Flex R,S
# (No.) 16 19 22
Gross weight (g) R 53.5 53.0 52.5
S 56.5 56.0 55.5
Torque (deg.) R 3.55 3.55 3.55
S 3.45 3.45 3.45
Frequency (cpm) R 287 291 295
S 303 329 311
Data refers to the 2S grade

VIZARD UT950

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.7
Tip diameter (mm) 9.3
# (No.) 16 19 22
Gross weight (g) 94.5 93.5 92.5
Torque (deg.) 2.45 2.45 2.45
Frequency (cpm) 342 347 352

VIZARD UT850

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
# (No.) 16 19 22
Gross weight (g) 84.0 83.0 82.0
Torque (deg.) 2.80 2.80 2.80
Frequency (cpm) 327 332 337

VIZARD UT650

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
# (No.) 16 19 22
Gross weight (g) 66.0 65.0 64.0
Torque (deg.) 3.20 3.20 3.20
Frequency (cpm) 310 315 320

VIZARD UT550

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
# (No.) 16 19 22
Gross weight (g) 55.5 55.0 54.5
Torque (deg.) 3.50 3.50 3.50
Frequency (cpm) 296 301 306

NS PRO 950GH

Material steel
Kick-point Mid
Butt diameter (mm) 15.0
Tip diameter (mm) 9.02
Flex S
# (No.) 16 19 22
Gross weight (g) S 98.0 98.0 98.0
Torque (deg.) S 2.00 2.00 2.00
Frequency (cpm) S 328 328 328
※Data is a maker official announcement value.
