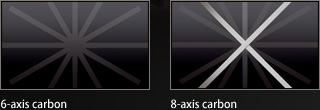

The ARMRQ6 features a six-axis carbon fabric consisting of carbon fibers with combination angles approaching a circular shape to enable the shaft to handle forces from all directions and demonstrate an improved restoration power. An eight-axis carbon fabric builds on the circular theory applied to our six-axis carbon fabric and adds 45-degree fibers to augment the capacity of the fabric to resist stress in the direction of torsion. This yields improved torsion stiffness and improved directionality at the point of impact and has made it possible to develop shafts that resist wobbling.
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Mid |
| Flex | S |
| Butt diameter (mm) | 15.5 |
| Tip diameter (mm) | 8.6 |
| Gross weight (g) | 66.0 |
| Torque (deg.) | 3.65 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Mid |
| Flex | S |
| Butt diameter (mm) | 15.5 |
| Tip diameter (mm) | 8.6 |
| Gross weight (g) | 66.0 |
| Torque (deg.) | 3.25 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Mid |
| Flex | S |
| Butt diameter (mm) | 15.5 |
| Tip diameter (mm) | 9.3 |
| Gross weight (g) | 64.0 |
| Torque (deg.) | 3.25 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Mid |
| Flex | S |
| Butt diameter (mm) | 15.6 |
| Tip diameter (mm) | 9.8 |
| Gross weight (g) | 68.5 |
| Torque (deg.) | 2.62 |
| Equipped model |
| Material | Carbon+eight-axisUD | |
|---|---|---|
| Kick-point | Mid | |
| Flex | R | S |
| Butt diameter (mm) | 15.5 | |
| Tip diameter (mm) | 8.6 | |
| Gross weight (g) | 55.0 | 58.0 |
| Torque (deg.) | 3.95 | 3.85 |
| Equipped model | ||
| Material | Carbon+eight-axisUD | |
|---|---|---|
| Kick-point | Mid | |
| Flex | R | S |
| Butt diameter (mm) | 15.5 | |
| Tip diameter (mm) | 8.6 | |
| Gross weight (g) | 55.0 | 58.0 |
| Torque (deg.) | 3.55 | 3.45 |
| Equipped model | ||
| Material | Carbon+eight-axisUD | |
|---|---|---|
| Kick-point | Mid | |
| Flex | R | S |
| Butt diameter (mm) | 15.5 | |
| Tip diameter (mm) | 9.3 | |
| Gross weight (g) | 53.5 | 56.5 |
| Torque (deg.) | 3.55 | 3.45 |
| Equipped model | ||
| Material | Carbon+eight-axisUD | |
|---|---|---|
| Kick-point | Mid | |
| Flex | R | S |
| Butt diameter (mm) | 15.4 | |
| Tip diameter (mm) | 9.8 | |
| Gross weight (g) | 59.5 | 62.5 |
| Torque (deg.) | 2.77 | 2.67 |
| Equipped model | ||
| Material | Carbon+eight-axisUD | ||
|---|---|---|---|
| Kick-point | Low-Mid | ||
| Flex | R | SR | S |
| Butt diameter (mm) | 15.4 | ||
| Tip diameter (mm) | 8.6 | ||
| Gross weight (g) | 50.0 | ||
| Torque (deg.) | 4.45 | ||
| Material | Carbon+eight-axisUD | ||
|---|---|---|---|
| Kick-point | Low-Mid | ||
| Flex | R | SR | S |
| Butt diameter (mm) | 15.4 | ||
| Tip diameter (mm) | 8.6 | ||
| Gross weight (g) | 50.0 | ||
| Torque (deg.) | 4.05 | ||
| Material | Carbon+eight-axisUD | ||
|---|---|---|---|
| Kick-point | Low-Mid | ||
| Flex | R | SR | S |
| Butt diameter (mm) | 15.4 | ||
| Tip diameter (mm) | 8.6 | ||
| Gross weight (g) | 48.0 | ||
| Torque (deg.) | 4.05 | ||
| Material | Carbon+eight-axisUD | |
|---|---|---|
| Kick-point | Low-Mid | |
| Flex | R | S |
| Butt diameter (mm) | 15.4 | |
| Tip diameter (mm) | 9.8 | |
| Gross weight (g) | 55.0 | |
| Torque (deg.) | 2.97 | |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Low |
| Flex | L |
| Butt diameter (mm) | 15.3 |
| Tip diameter (mm) | 8.6 |
| Gross weight (g) | 46.0 |
| Torque (deg.) | 5.50 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Low |
| Flex | L |
| Butt diameter (mm) | 15.3 |
| Tip diameter (mm) | 8.6 |
| Gross weight (g) | 46.5 |
| Torque (deg.) | 5.15 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Low |
| Flex | L |
| Butt diameter (mm) | 15.3 |
| Tip diameter (mm) | 8.6 |
| Gross weight (g) | 44.0 |
| Torque (deg.) | 5.15 |
| Equipped model |
| Material | Carbon+eight-axisUD |
|---|---|
| Kick-point | Low |
| Flex | L |
| Butt diameter (mm) | 15.2 |
| Tip diameter (mm) | 9.8 |
| Gross weight (g) | 46.5 |
| Torque (deg.) | 4.29 |
| Equipped model |
