TOUR WORLDTW717FAIRWAY WOOD

TOUR WORLD TW717
TW717特設サイト

Page Top

TECHNOLOGY

Balls can be launched on a powerful trajectory and greater carry distance is achieved

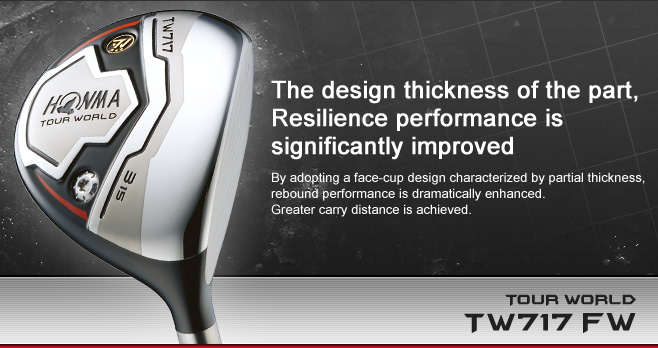

  • By adopting a face-cup design, rebound performance is enhanced. Greater carry distance is achieved.
  • Initial ball velocity is increased with a partial-thickness design for enhancing rebound performance made possible by effectively harnessing the face area.
TW717

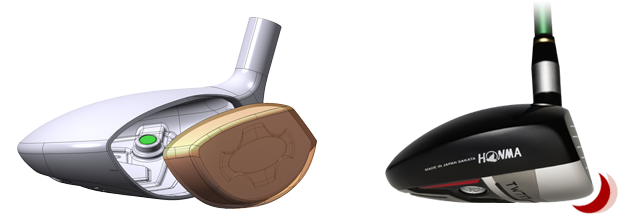

body:Casting face: cup face
A rounded leading edge reduces the incidence of improperly hit balls by allowing even balls that have sunk a little to be easily scooped up.

TW717
Approximately 3.5-gram weight screw

Page Top

SPEC

Head material / Manufacturing process SUS630/Casting
Face material High-Strength Customed Steel cup face / Forged
Shaft ARMRQ8 62,ARMRQ8 54
VIZARD TA75,TA65,TA55,TZ75,TZ65
# (No.) 3W 3W 5W 7W
Loft (deg.) 13 15 18 21
Head volume（cm3） 158 156 149 137
Length (inches) 42.75 42.75 42.25 41.75
Lie angle (deg.) 58.5 58.5 59.0 59.0
Distance to center of gravity (mm) 32.5 32.5 32.5 32.0
Height to Center of Gravity (mm) 22.5 22.5 23.0 23.5
Depth to center of gravity (mm) 30.0 30.0 30.0 30.0
Gravity Angle (deg.) 22.0 21.0 20.0 18.5
Swing weight・
Gross weight (g)		 ARMRQ8 62 R D0 328 D0 328 D0 332 D0 336
S D1 333 D1 333 D1 337 D1 341
ARMRQ8 54 R D0 321 D0 321 D0 325 D0 329
S D1 326 D1 326 D1 330 D1 334
TA　TZ75 S D2 341 D2 341 D2 345 D2 349
TA　TZ65 SR D2 332 D2 332 D2 336 D2 340
S D2 334 D2 334 D2 338 D2 342
TA55 R D1 323 D1 323 D1 327 D1 331
S D2 328 D2 328 D2 332 D2 336
ARMRQ:Data refers to the 2S
Made in Japan

Page Top

SHAFT

Please click here for details of shaft.
  • ARMRQ8
  • TA
  • TZ

ARMRQ8 62

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) R 15.5
S 15.5
Tip diameter (mm) 8.6
Flex R,S
# (No.) 3W 5W 7W
Gross weight (g) R 63.0 62.5 62.0
S 66.0 65.5 65.0
Torque (deg.) R 3.35 3.35 3.35
S 3.25 3.25 3.25
Frequency (cpm) R 293 298 303
S 309 314 319
Data refers to the 2S grade

ARMRQ8 54

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) R 15.5
S 15.5
Tip diameter (mm) 8.6
Flex R,S
# (No.) 3W 5W 7W
Gross weight (g) R 55.0 54.5 54.0
S 58.0 57.5 57.0
Torque (deg.) R 3.55 3.55 3.55
S 3.45 3.45 3.45
Frequency (cpm) R 275 279 283
S 291 295 299
Data refers to the 2S grade

TA75

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 8.6
Flex S
# (No.) 3W 5W 7W
Gross weight (g) S 73.0 72.5 72.0
Torque (deg.) S 3.05 3.05 3.05
Frequency (cpm) S 321 326 331
Data refers to the 1W

TA65

Material Carbon
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
Tip diameter (mm) 8.6
Flex SR,S
# (No.) 3W 5W 7W
Gross weight (g) SR 63.5 63.0 62.5
S 65.0 64.5 64.0
Torque (deg.) SR 3.50 3.50 3.50
S 3.45 3.45 3.45
Frequency (cpm) SR 310 315 320
S 318 323 328

TA55

Material Carbon
Kick-point Mid
Butt diameter (mm) R 15.4
S 15.5
Tip diameter (mm) 8.6
Flex R,S
# (No.) 3W 5W 7W
Gross weight (g) R 55.0 54.5 54.0
S 58.0 57.5 57.0
Torque (deg.) R 3.95 3.95 3.95
S 3.85 3.85 3.85
Frequency (cpm) R 289 293 297
S 305 309 313

TZ75

Material Carbon
Kick-point High
Butt diameter (mm) 15.6
Tip diameter (mm) 8.6
Flex S
# (No.) 3W 5W 7W
Gross weight (g) S 75.0 74.5 74.0
Torque (deg.) S 3.0 3.0 3.0
Frequency (cpm) S 310 315 320

TZ65

Material Carbon
Kick-point High
Butt diameter (mm) SR 15.6
S 15.6
Tip diameter (mm) 8.6
Flex SR,S
# (No.) 3W 5W 7W
Gross weight (g) SR 65.5 65.0 64.5
S 67.0 66.5 66.0
Torque (deg.) SR 3.45 3.45 3.45
S 3.40 3.40 3.40
Frequency (cpm) SR 299 304 309
S 307 312 317
Data refers to the 1W
