TECHNOLOGY

six-axis carbon
six-axis carbon
eight-axis carbon
eight-axis carbon

The ARMRQ6 features a six-axis carbon fabric consisting of carbon fibers with combination angles approaching a circular shape to enable the shaft to handle forces from all directions and demonstrate an improved restoration power. An eight-axis carbon fabric builds on the circular theory applied to our six-axis carbon fabric and adds 45-degree fibers to augment the capacity of the fabric to resist stress in the direction of torsion. This yields improved torsion stiffness and improved directionality at the point of impact and has made it possible to develop shafts that resist wobbling.

PAGE TOP

LINEUP

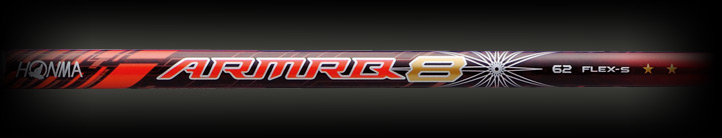

ARMRQ8 62

ARMRQ8 62
ARMRQ8 62 DRIVER
Material Carbon+eight-axisUD
Kick-point Mid
Flex S
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Gross weight (g) 66.0
Torque (deg.) 3.65
*Data refers to the 2S/1W
ARMRQ8 62 FAIRWAY WOOD
Material Carbon+eight-axisUD
Kick-point Mid
Flex S
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Gross weight (g) 66.0
Torque (deg.) 3.25
*Data refers to the 2S/3W
ARMRQ8 62 UTILITY
Material Carbon+eight-axisUD
Kick-point Mid
Flex S
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
Gross weight (g) 64.0
Torque (deg.) 3.25
*Data refers to the 2S/UT(16)
ARMRQ8 62 IRON
Material Carbon+eight-axisUD
Kick-point Mid
Flex S
Butt diameter (mm) 15.6
Tip diameter (mm) 9.8
Gross weight (g) 68.5
Torque (deg.) 2.62
*Data refers to the 2S/7I

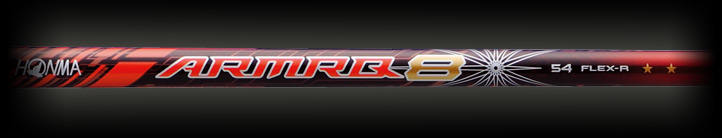

ARMRQ8 54

ARMRQ8 54
ARMRQ8 54 DRIVER
Material Carbon+eight-axisUD
Kick-point Mid
Flex R S
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Gross weight (g) 55.0 58.0
Torque (deg.) 3.95 3.85
*Data refers to the 2S/1W
ARMRQ8 54 FAIRWAY WOOD
Material Carbon+eight-axisUD
Kick-point Mid
Flex R S
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Gross weight (g) 55.0 58.0
Torque (deg.) 3.55 3.45
*Data refers to the 2S/3W
ARMRQ8 54 UTILITY
Material Carbon+eight-axisUD
Kick-point Mid
Flex R S
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
Gross weight (g) 53.5 56.5
Torque (deg.) 3.55 3.45
*Data refers to the 2S/UT(16)
ARMRQ8 54 IRON
Material Carbon+eight-axisUD
Kick-point Mid
Flex R S
Butt diameter (mm) 15.4
Tip diameter (mm) 9.8
Gross weight (g) 59.5 62.5
Torque (deg.) 2.77 2.67
*Data refers to the 2S/7I

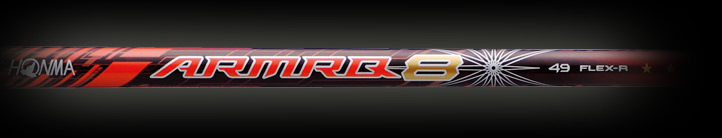

ARMRQ8 49

ARMRQ8 49
ARMRQ8 49 DRIVER
Material Carbon+eight-axisUD
Kick-point Low-Mid
Flex R SR S
Butt diameter (mm) 15.4
Tip diameter (mm) 8.6
Gross weight (g) 50.0
Torque (deg.) 4.45
*Data refers to the 2S/1W
ARMRQ8 49 FAIRWAY WOOD
Material Carbon+eight-axisUD
Kick-point Low-Mid
Flex R SR S
Butt diameter (mm) 15.4
Tip diameter (mm) 8.6
Gross weight (g) 50.0
Torque (deg.) 4.05
*Data refers to the 2S/3W
ARMRQ8 49 UTILITY
Material Carbon+eight-axisUD
Kick-point Low-Mid
Flex R SR S
Butt diameter (mm) 15.4
Tip diameter (mm) 8.6
Gross weight (g) 48.0
Torque (deg.) 4.05
*Data refers to the 2S/UT(22)
ARMRQ8 49 IRON
Material Carbon+eight-axisUD
Kick-point Low-Mid
Flex R S
Butt diameter (mm) 15.4
Tip diameter (mm) 9.8
Gross weight (g) 55.0
Torque (deg.) 2.97
*Data refers to the 2S/7I

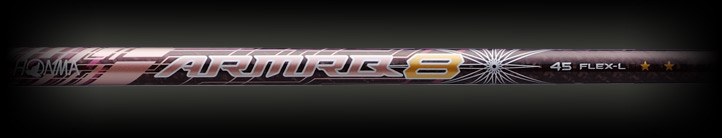

ARMRQ8 45

ARMRQ8 45
ARMRQ8 45 DRIVER
Material Carbon+eight-axisUD
Kick-point Low
Flex L
Butt diameter (mm) 15.3
Tip diameter (mm) 8.6
Gross weight (g) 46.0
Torque (deg.) 5.50
*Data refers to the 2S/1W
ARMRQ8 54 FAIRWAY WOOD
Material Carbon+eight-axisUD
Kick-point Low
Flex L
Butt diameter (mm) 15.3
Tip diameter (mm) 8.6
Gross weight (g) 46.5
Torque (deg.) 5.15
*Data refers to the 2S/3W
ARMRQ8 54 UTILITY
Material Carbon+eight-axisUD
Kick-point Low
Flex L
Butt diameter (mm) 15.3
Tip diameter (mm) 8.6
Gross weight (g) 44.0
Torque (deg.) 5.15
*Data refers to the 2S/UT(22)
ARMRQ8 45 IRON
Material Carbon+eight-axisUD
Kick-point Low
Flex L
Butt diameter (mm) 15.2
Tip diameter (mm) 9.8
Gross weight (g) 46.5
Torque (deg.) 4.29
*Data refers to the 2S/7I
PAGE TOP
Newly developed shaft VIZARD
  • CONCEPT
  • TECHNOLOGY
  • PLAYER
  • LINEUP

CONCEPT

VIZARD:Victory+Wizard term coined.

The name VIZARD is meant to convey an image of a wizard hauling in victories. We devoted ourselves to the development of shafts that would deliver wins to all contract pros and golfing enthusiasts.

Vizard

Shafts are exclusively designed for the TW series through the incorporation of the needs of tour pros and top amateurs. Two basic types are modified in terms of weight and hardness to offer a variety of shafts that accommodate all golfers irrespective of their idiosyncrasies.

Research conducted with professionals led to the creation of two broad categories of shafts: a springy type of shaft (Mid Kick Point) and a sticky type of shaft (Hight Kick Point).

TAシリーズ「弾き系シャフト」
  • The center of this shaft and the grip are highly rigid to give the user the impression that the tip of this shaft is moving through the swing very rapidly.
  • There is little pliability but the shaft snaps back very quickly.
  • Design is focused on flight distance in terms of effectively hitting the ball squarely and straight and high-trajectory shots.
TZシリーズ「粘り系シャフト」
  • The grip has been designed with a low degree of stiffness relative to the rest of the shaft in order to produce stickiness (pliability).
  • This shaft appears to be pliable and it is easy to get a feel for the weight of the head for greater maneuverability.
  • Design is focused on stability, with the center and tip of this shaft exhibiting little in the way of movement; thus, the club resists being swung to the left and balls are more inclined to be hit low.
PAGE TOP

TECHNOLOGY

Ongoing research conducted with professionals yielded a successful fusion of objective data and subjective impressions.

Feedback obtained from male, female, and senior professionals active in tournaments was consolidated. The process of trial production was carried out repeatedly at the Sakata Plant and related data were amassed. By combining these data with prototype impressions, shaft characteristics were subject to management by way of quantification, which made precise distribution according to stiffness possible.

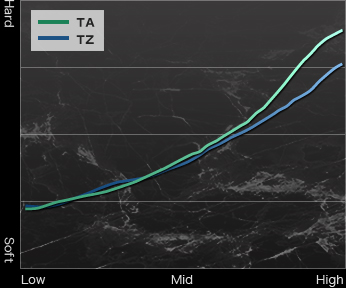

Stiffness distribution
TA characteristic

By making the part of this shaft extending from the grip to the center highly rigid and the tip only moderately so, shaft movement on the downswing is kept in check to enable shots to be timed with ease and a powerful springy sensation to be generated.

TZ characteristic

By making the part of this shaft extending from the center to the tip more rigid than the grip, the stickiness of the grip gives rise to maneuverability while the firmness of the center and tip of this shaft helps prevent the face from closing excessively and shots from popping up.

Stiffness distribution
PAGE TOP

Feedback obtained from male, female, and senior professionals active in tournaments was consolidated.
PLAYER

  • パグンサン プロ
  • ユ ソヨン プロ
  • キム ドフン プロ
  • ヤン スジン プロ
  • Hiroshi Iwata プロ
  • Masamichi Uehira プロ
PAGE TOP

LINEUP

Spring-type TA  (Mid Kick Point) and sticky-type TZ (High Kick Point): By modifying these two types according to weight and hardness, golf enthusiasts can have their every need satisfied.

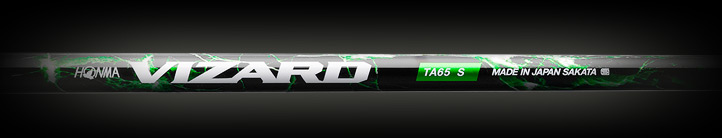

VIZARD TA

VIZARD TA
VIZARD TA75
Material Carbon
Kick-point Low-Mid
Flex S X
Butt diameter (mm) 15.6 15.7
Tip diameter (mm) 8.6
Gross weight (g) 73.5 76.5
Torque (deg.) 3.45 3.35
Frequency (cpm) 295 311
*Data refers to the 1W
VIZARD TA65
Material Carbon
Kick-point Low-Mid
Flex SR S X
Butt diameter (mm) 15.6 15.6 15.7
Tip diameter (mm) 8.6
Gross weight (g) 63.5 65.0 68.0
Torque (deg.) 3.90 3.85 3.75
Frequency (cpm) 284 292 308
*Data refers to the 1W

VIZARD TA55
Material Carbon
Kick-point Low-Mid
Flex R S
Butt diameter (mm) 15.4 15.5
Tip diameter (mm) 8.6
Gross weight (g) 55.0 58.0
Torque (deg.) 4.35 4.25
Frequency (cpm) 265 281
*Data refers to the 1W

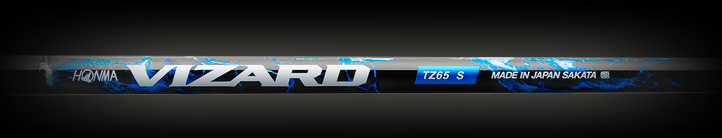

VIZARD TZ

VIZARD TZ
VIZARD TZ75
Material Carbon
Kick-point High
Flex S X
Butt diameter (mm) 15.6 15.7
Tip diameter (mm) 8.6
Gross weight (g) 75.5 78.5
Torque (deg.) 3.40 3.30
Frequency (cpm) 287 303
*Data refers to the 1W
VIZARD TZ65
Material Carbon
Kick-point High
Flex SR S X
Butt diameter (mm) 15.5 15.6 15.7
Tip diameter (mm) 8.6
Gross weight (g) 65.5 67.0 70.0
Torque (deg.) 3.85 3.80 3.70
Frequency (cpm) 276 284 300
*Data refers to the 1W

VIZARD TA

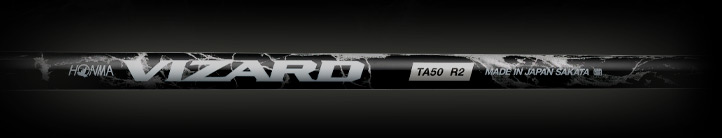

VIZARD TA50
VIZARD TA50
Material Carbon
Kick-point Low-Mid
Flex R2
Butt diameter (mm) 15.4
Tip diameter (mm) 8.6
Gross weight (g) 49.5
Torque (deg.) 5.40
Frequency (cpm) 241
*Data refers to the 1W

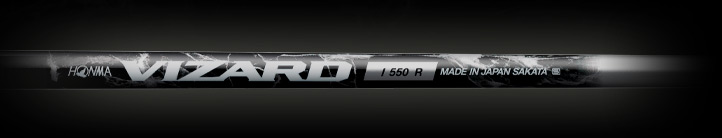

VIZARD I

VIZARD I
VIZARD I550
Material Carbon
Kick-point Low-Mid
Flex R S
Butt diameter (mm) 15.5 15.6
Tip diameter (mm) 9.8
Gross weight (g) 58.5 61.5
Torque (deg.) 3.30 3.20
Frequency (cpm) 282 298
*Data refers to the #5
VIZARD I500
Material Carbon
Kick-point Low-Mid
Flex R2
Butt diameter (mm) 15.2
Tip diameter (mm) 9.8
Gross weight (g) 51.0
Torque (deg.) 3.86
Frequency (cpm) 252
*Data refers to the #5

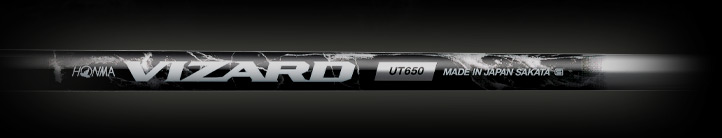

VIZARD UT

VIZARD UT
VIZARD UT950
Material Carbon
Kick-point Low-Mid
Butt diameter (mm) 15.7
Tip diameter (mm) 9.3
Gross weight (g) 93.5
Torque (deg.) 2.45
Frequency (cpm) 347
*Data refers to the UT/19
VIZARD UT850
Material Carbon
Kick-point Low-Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
Gross weight (g) 83.0
Torque (deg.) 2.80
Frequency (cpm) 332
*Data refers to the UT/19

VIZARD UT650
Material Carbon
Kick-point Low-Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
Gross weight (g) 65.0
Torque (deg.) 3.20
Frequency (cpm) 315
*Data refers to the UT/19
VIZARD UT550
Material Carbon
Kick-point Low-Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 9.3
Gross weight (g) 55.0
Torque (deg.) 3.50
Frequency (cpm) 301
*Data refers to the UT/19

VIZARD UT500
Material Carbon
Kick-point Low-Mid
Butt diameter (mm) 15.4
Tip diameter (mm) 8.6
Gross weight (g) 44.5
Torque (deg.) 5.05
Frequency (cpm) 285
*Data refers to the UT/25
